HH Fluorescent

LH0166 (1-811H)

HO or VHO fluorescent or LED tombstone, plunger (male) end.

LOGIN TO VIEW THIS PRICE

Also, see matching stationary end LH0165

Link to HO , T10 1500mA, T12 VHO, lamps that fit this socket

Quantity:

Description

The LH0166 HH-1-811H tombstone lamp holder is a non-shunted, plunger (male) end, push fit LED or fluorescent HO, VHO lamp holder. The LH0166 fits RDC R17d lamp bases and has ratings of 660w - 600v for HO fluorescent and LED lamps. It is made of thermoplastic and is cULus certified. It is typically used in commercial and industrial lighting applications. The LH0166 HH-1-811H is similar or equal To: American DeRosa: D3943, DM Technology: DM38-20, 85520, HH Fluorescent: 1-811H, Satco: 80-1498 and Supermarket Parts Warehouse: FR5-205

Also, see matching stationary end LH0165

Link to HO , T10 1500mA, T12 VHO, lamps that fit this socket

HH Fluorescent
Model# 1-811H
1.312 x 1.500 x 048
Lamp axis 21mm
R17d, recessed double contact
Non-shunted
For HO or VHO tubular fluorescents or LED with R17d ends
Push fit mounting
Quick connect connectors
UL, CSA
660w 600v
Plunger (male) end
Similar or Equal To: American DeRosa D3943, DM Technology DM38-20, 85520, HH Fluorescent 1-811H, Satco 80-1498 and Supermarket Parts Warehouse FR5-205

Specifications

Specification

Status: Available

Case Qty: 200 (sold individually)

Country of Origin: China

Certifications / Approvals: CSA

Rated Wattage: 660w

Rated Voltage: 600v

Bulb Type: Linear Tube

Base Type: R17d

Base Description: Recessed Double Contact

Material: Thermoplastic

Termination: Quickwire 18AWG

Mounting Type: Snap-In, Slide-On, Screw Mount

Shunt Type: Non-Shunted

Dimensions(L/W/H): 1.312 x 1.500 x 2.048

Weight: 0.07

General

Brand: HH Fluorescent

Item #: 70222

Category: HO/VHO

Attachments

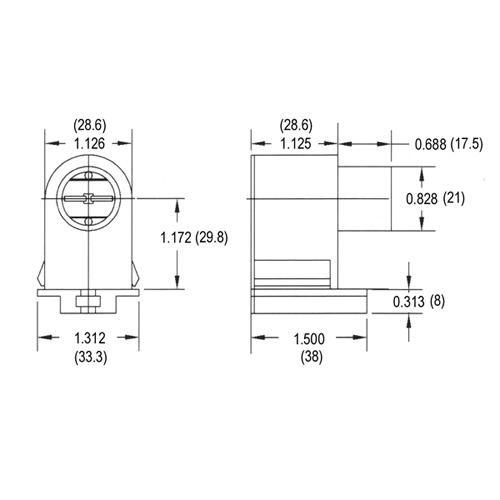

Dimensional Drawing

Dimensional Drawing
