HH Fluorescent

LH0165 (1-810H)

tombstone lamp holder is a nonshunted, stationary (female) end, HO or VHO

LOGIN TO VIEW THIS PRICE

Matching plunger end LH0166

Link to HO , T10 1500mA, T12 VHO, lamps that fit this socket

Quantity:

Description

TheLH0165 tombstone lamp holder is a nonshunted, stationary (female) end, push fit or screw down HO lamp holder. TheLH0165 fits RDC R17d lamp bases and has ratings of 660w - 600v for HO and VHO fluorescent and LED lamps. It is made of thermoplastic and is cULus certified. TheLH0165 can replace the D3944 from American DeRosa, the DM38-19 58819 from DM Technology, the 1-810H from HH Fluorescent, the 80-1499 from Satco and the FR5-206 from Supermarket Parts Warehouse

Matching plunger end LH0166

Link to HO , T10 1500mA, T12 VHO, lamps that fit this socket

HH Fluorescent
Model# 1-810H
1.89 x 1.31 x 1.50
Lamp axis 30mm
R17d recessed double contact
Non-shunted
For LED and HO or VHO fluorescent tubular lamps
Slide on or push fit mounting
Quick connect connections
UL
660w 600v
Similar or equal to the American DeRosa D3944, DM DM38-19 58819 from HH Fluorescent 1-810H Satco 80-1499 and the Supermarket Parts Warehouse FR5-206

Specifications

Specification

Status: Available

Case Qty: 200 (sold individually)

Country of Origin: China

Certifications / Approvals: UL

Rated Wattage: 660w

Rated Voltage: 600v

Bulb Type: Linear Tube

Base Type: R17d

Base Description: Recessed Double Contact

Material: Thermoplastic

Termination: Quickwire 18AWG

Mounting Type: Snap-In, Slide-On, Screw Mount

Shunt Type: Non-Shunted

Dimensions(L/W/H): 1.89 x 1.49 x 1.13

Weight: 0.07

General

Brand: HH Fluorescent

Item #: 70221

Category: HO/VHO

Attachments

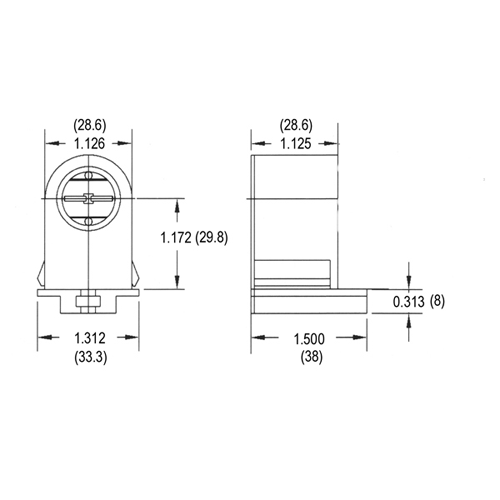

Dimensional Drawing

Dimensional Drawing
