MADE IN THE USA

EMF LR89 (LH0104) Front

EMF USA

LH0104 (HMD-LR89)

Non-shunted, G13 medium bipin, fluorescents or LED, molded, water resistant

Also see the matching T8 Cap LH0358
or the matching T12 Cap LH0339

Quantity:
Description

TheLH0104 EMF LR89 lampholder socket is non-shunted, water resistant, and has flexible wings. It is designed for T8-T12 fluorescent or LED bulbs.TheLH0104 EMF LR89 along with a tube guard and cap provide a water resistant for deli, meat and produce case lighting applications.

It has a G13 medium bipin base, meaning that it is compatible with bulbs that have two pins spaced 13mm apart. The socket is typically used in the food industry..

Here are some key features of the LH0104 EMF LR89 socket:

Water resistant: The socket is designed to be resistant to moisture, making it suitable for use in wet or humid environments.
Push fit: The socket is easy to install, as it can simply be pushed into place.

Also see the matching T8 Cap LH0358 or the matching T12 Cap LH0339

  • EMF
  • Model # LR89

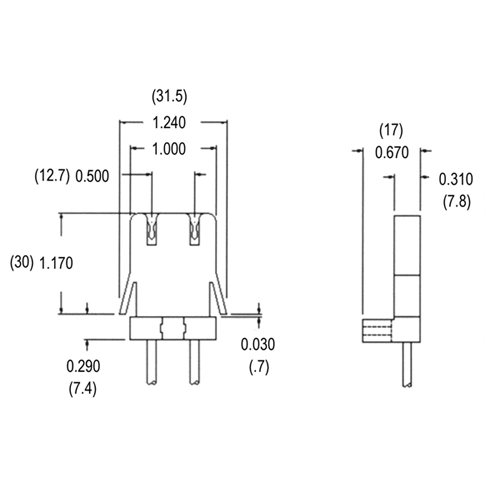

  • 1.46 x 1.24 x 0.67
  • G13 medium bipin base
  • Non-shunted
  • For LED and fluorescent medium bipin tubular lamps
  • Snap in mounting
  • 6 inch #18 awg leads
  • UL and CSA listed
  • 660w 1000v
  • Nut and screw included
Specifications
Specification
Status
Available
Case Qty
400 (sold individually)
Shunt Type
Non-Shunted
Dimensions(L/W/H)
1.24 x 0.67 x 1.46
Weight
0.04
Country of Origin
United States
Certifications / Approvals
UL, CSA
UL File No.
E162429
Warranty
30 Day Limited Warranty
Rated Wattage
660w
Rated Voltage
1000v
Bulb Type
Linear Tube
Base Type
G13
Base Description
Medium Bi-Pin
Material
Polycarbonate
Termination
#18AWG 105C 600v 6 wire leads
Wire Length
6
Mounting Type
Snap-In, Slide-On, Screw Mount
General
Brand
EMF USA
Item #
70160
Category
Medium Bi-Pin (G13) Linear Bi-Pin T8/T12 BiPin T8 BiPin T8 U-Bend BiPin
