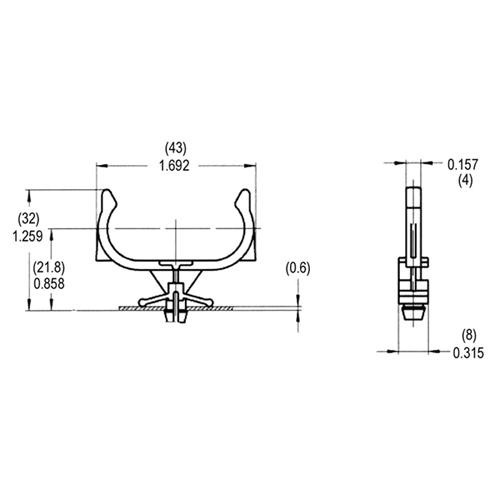

LH0324 Dimensional drawing

LH0324 Dimensional drawing

HH Fluorescent

LH0324

2G11, PLL, Long Twin Tube, horizontal, lamp support, circular hole mount, 21.8mm

LOGIN TO VIEW THIS PRICE

Description

The LH0324 HH Fluorescent HH-0324 lamp clip support is a component designed to hold and position Long Twin Tube, Biax and PLL lamps in a horizontal position fluorescent lamps. The LH0324 is designed to mount into a 5.5mm circular hole. It has a 21.8mm lamp axis to keep the lamp level with a matching 2G11 socket. It is similar or equal to the BJB 26.726.812.85. DM Technology BLS-36-08, 59020, HH Fluorescent 1320-11, Lithonia U079916 and Vossloh Schwabe 501901

HH Fluorescent
Model# HH0324
1.69 x 1.26 x 0.32
Designed for 2G11 base lamps
The foot mounts into a 5.5mm hole.
Similar or equal to the BJB 26.726.812.85. DM Technology BLS-36-08, 59020, HH Fluorescent 1320-11, Lithonia U079916 and Vossloh Schwabe 501901

Compare with similar products

	HH FluorescentLH0324 2G11, horizontal supportAdd to Cart
Reviews	(2)
Status	Available
Case Qty	2,000 (sold individually)
Country of Origin	China
Warranty	30 Day Limited Warranty
Item Type	Lamp Support
Bulb Shape	4-Pin Compact Fluorescent
Bulb Type	PL-L
Base Type	2G11
Material	Polycarbonate
Mounting Type	Snap-In
Panel Cut-Out	5.5mm Round
Color	Off-White
Style Name	Horizontal
Dimensions(L/W/H)	1.69 x 1.26 x 0.32
Weight	0.01
Show More Specifications

Specifications

Specification

Status: Available

Case Qty: 2,000 (sold individually)

Country of Origin: China

Warranty: 30 Day Limited Warranty

Item Type: Lamp Support

Bulb Shape: 4-Pin Compact Fluorescent

Bulb Type: PL-L

Base Type: 2G11

Material: Polycarbonate

Mounting Type: Snap-In

Panel Cut-Out: 5.5mm Round

Color: Off-White

Style Name: Horizontal

Dimensions(L/W/H): 1.69 x 1.26 x 0.32

Weight: 0.01

General

Brand: HH Fluorescent

Item #: 70380

Category: Support Clips Support Clips

Attachments

Dimensional Drawing

Dimensional Drawing
