LH0403 (8647-100)

E39 4kv pulse rated mogul HID socket extender extends lamp aprox 2 3/8"

Description

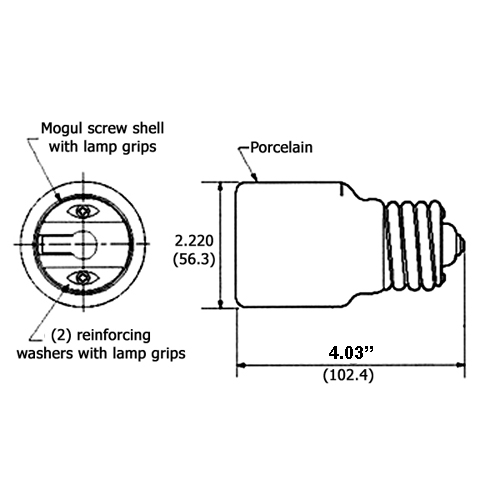

The LH0403 Leviton 8647-100 is a high-performance mogul-to-mogul base socket extension designed primarily for commercial and industrial lighting applications. Constructed from high-quality glazed porcelain, this one-piece adapter provides a 2-3/8 inch extension, allowing specialized bulbs to fit into recessed or deep porcelain sockets where standard clearance is insufficient. It is engineered to handle demanding electrical loads, boasting a robust 1500W wattage rating and a 600V voltage rating. The inclusion of a nickel-plated copper alloy screw shell ensures superior conductivity and resistance to corrosion over time. This pulse-rated (4kV) component is specifically intended for use within porcelain sockets, making it an essential utility for high-intensity discharge (HID) or high-wattage incandescent lighting setups that require durable, heat-resistant extensions. The Leviton 8647-100 is similar or equal to the American DeRosa's D348, Miller OEM L864 and Satco 90-1801

Extension length: Adds exactly 2-3/8 inches to the lamp socket depth.
Base compatibility: Designed for Mogul (E39) to Mogul (E39) connections.
Voltage rating: Rated for high-voltage applications up to 600 Volts.
Maximum wattage: Supports heavy-duty power loads up to 1500 Watts.
Shell material: Durable glazed porcelain construction for heat resistance.
Internal contact: Nickel-plated copper alloy shell for better conductivity.
Pulse rating: 4kV pulse rated, making it suitable for HID lighting systems.
Socket restriction: Must only be used in existing porcelain lamp sockets.
Certifications: Fully UL Listed and CSA Certified for safety and compliance.
Body color: Classic white finish to match industrial porcelain fixtures.
