GE Lighting

LET-75

75w max. 120-12s step-down dimmable transformer

true

$1,000.00

Discontinued, view suggested replacement. CV90001
see comparison below.

Description

GE Lighting LET-75 75w max. 120v-12v dimmable transformer

Electronic Internal Resettable Protection
No-Load Detection Circuit
Cannot use Volt-Meter to Test Output Voltage

Compare with similar products

	GE LightingLET-75 120v-12v 75w max. dimmable transformerAdd to Cart	B+L TechnologiesCV90001 120v-12v 75w dimmable Add to Cart
Reviews	(1)	(1)
Status	Discontinued	Available
Case Qty	120 (sold individually)	100 (sold individually)
Country of Origin	China	China
Certifications / Approvals	cULus	UL, CSA
UL File No.	E164062	E146614
UL Listed	Type 1 Indoor
Warranty	2 Year Manufacturer Warranty
Operating Frequency	60Hz
Wattage (Po)	75	75
Voltage (V)	120V
Input Volts (Vin)	120V	120v
Output Volts (Vo)	12V	12v
Output Current (Io)	6250mA
Amps (A)	0.60A
Item Type	12V Low Voltage Transformer	Electronic
Bulb Shape	Halogen, LED
Bulb Type	MR11, MR16, T3
Base Type	G4, G5.3, G6.35, R7s
Dimmable	Yes	40w
Minimum Load (Po)	10W
Minimum Dimming Load (Po)	20W
Series	Lightech
Termination	#18AWG Stranded and Tinned, 1/2 stripped
Wire Type	AWM 200C 600V (VW-1, Style 3557 )
Color	Metallic
Dimensions(L/W/H)	2.09x1.3x0.79	2.78 x 1.35 x 1.03
Weight	0.21	0.35
Show More Specifications

Specifications

Specification

Status: Discontinued

Case Qty: 120 (sold individually)

Country of Origin: China

Certifications / Approvals: cULus

UL File No.: E164062

UL Listed: Type 1 Indoor

Warranty: 2 Year Manufacturer Warranty

Operating Frequency: 60Hz

Wattage (Po): 75

Voltage (V): 120V

Input Volts (Vin): 120V

Output Volts (Vo): 12V

Output Current (Io): 6250mA

Amps (A): 0.60A

Item Type: 12V Low Voltage Transformer

Bulb Shape: Halogen, LED

Bulb Type: MR11, MR16, T3

Base Type: G4, G5.3, G6.35, R7s

Dimmable: Yes

Minimum Load (Po): 10W

Minimum Dimming Load (Po): 20W

Series: Lightech

Termination: #18AWG Stranded and Tinned, 1/2 stripped

Wire Type: AWM 200C 600V (VW-1, Style 3557 )

Color: Metallic

Dimensions(L/W/H): 2.09x1.3x0.79

Weight: 0.21

General

Brand: GE Lighting

Item #: 70836

Category: 12v Step Down Transformers

Attachments

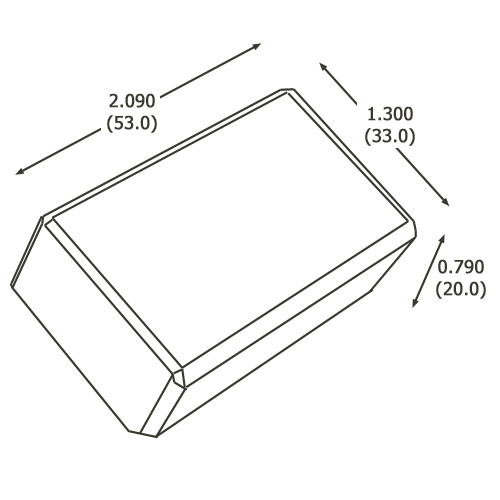

Dimensional Drawing

Dimensional Drawing
