MADE IN THE USA

EMF USA

LH0365 (HMD-LR97LC)

Non-shunted, T8 water resistant, push fit, socket w/ locking clip

LOGIN TO VIEW THIS PRICE

TARIFF INCLUSIVE PRICING. No hidden fees or add-ons at checkout.

Description

The EMF-USA LR97LC is a display case lampholder / tombstone / socket for T8 LED or fluorescent tubular lamps. It is a push fit socket with a locking clip attached. The EMF LR97LC is molded to for moisture resistance so that it can be used in display cases that have misting systems.

EMF USA
Model# LR97LC
1.53 x 1.00 x 0.75
22.8mm lamp axis
G13 medium bipin
Un-shunted
For T8 or T12 LED or fluorescent tubular lamps
Water resistant when used with matching cap and tube guard
Locking stop for secure fit
Push fit mounting
Two 6 inch #18gauge leads
660w 600v

Specifications

Specification

Status: Available

Case Qty: 400 (sold individually)

Country of Origin: United States

Certifications / Approvals: UL, CSA

UL File No.: E162429

Warranty: 30 Day Limited Warranty

Rated Wattage: 660w

Rated Voltage: 1000v

Base Type: G13

Material: Polycarbonate

Termination: #18AWG 105C 600v 6 wire leads

Wire Length: 6

Mounting Type: Snap-In

Shunt Type: Non-Shunted

Dimensions(L/W/H): 1.00 x 0.90 x 1.53

Weight: 0.04

General

Brand: EMF USA

Item #: 70421

MSRP: $6.88

Category: Medium Bi-Pin (G13) Linear Bi-Pin T8 BiPin

Attachments

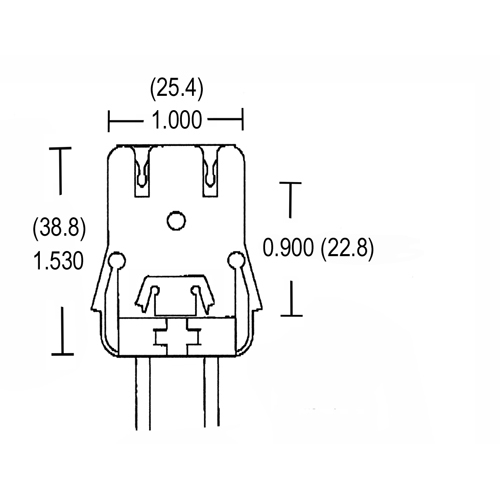

Dimensional Drawing

Dimensional Drawing
