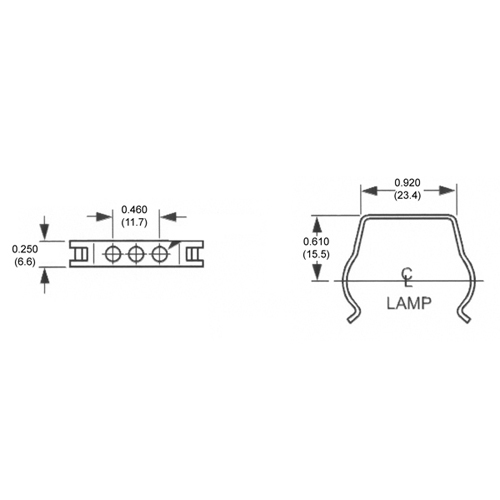

Dimensional drawing

Dimensional drawing

Edwin Gaynor

LH0502 (787-5)

2G11, stainless steel -horizontal, lamp support, 15.5mm lamp axis

LOGIN TO VIEW THIS PRICE

Description

The LH0502 Edwin Gaynor 787-5 ia a 2G11 lamp support clip. It supports the lamp in a horizontal position with a lamp axis of 15.5mm. The LH0502 Edwin Gaynor 787-5 is stainless steel and has three holes for mounting. It is similar and equal to the Edwin Gaynor 787-5 and the Satco 80-2119.

Edwin Gaynor 757-5
Horizontal
2G11 long twin tube, PLL
Stainless steel
15.5mm lamp axis

Specifications

Specification

Status: Available

Case Qty: 2,000 (sold individually)

Country of Origin: Mexico

Bulb Shape: PL-L Long Twin Tube

Bulb Type: Long Twin Tube

Base Type: 2G11

Material: Stainless Steel

Mounting Type: Screw Mount

Shunt Type: Non-Shunted

Dimensions(L/W/H): 1x.25x.98

Weight: 0.01

General

Brand: Edwin Gaynor

Item #: 70558

Category: Support Clips Support Clips
