LH0185 Line Drawing

LH0185 Line Drawing

Edwin Gaynor

LH0185 (1185-9-VS)

2-pin G23 or G23-2 CFL socket for 5w, 7w, 9w and 11w lamps

LOGIN TO VIEW THIS PRICE

Description

The LH0185 Edwin Gaynor 1185-9-VS is a lampholder (socket) that is a 2-pin G23 or G23-2 CFL socket for 5w, 7w, 9w and 11w lamps. It has front snap in vertical mounting. The LH0185 Edwin Gaynor 1185-9-VSis made of polycarbonate and is UL and CSA listed. It has a rating of 75w - 600v and is 1.00 x 1.23 x 1.35 inches. 1185, g23, g23-2, vertical, two pin, cfl, socket, 5w, 7w, 9w, 11w

Edwin Gaynor
Model # 1185-9-VS
1.00 x 1.23 x 1.35
G23, G23-2 two pin CFL base
For 5, 7, 9 or 11w two pin CFL lamps
Top snap in mounting
Quick wire connections
UL, CSA
75W 600V

Specifications

Specification

Status: Available

Case Qty: 500 (sold individually)

Country of Origin: Mexico

Certifications / Approvals: UL, CSA

Rated Wattage: 75w

Rated Voltage: 600v

Bulb Type: Twin Tube

Base Type: G23

Base Description: 2-Pin Compact Fluorescent

Material: Polycarbonate

Termination: Quickwire 18AWG

Mounting Type: Snap-In

Dimensions(L/W/H): 1.00 x 1.23 x 1.35

Weight: 0.02

General

Brand: Edwin Gaynor

Item #: 70241

Category: 2pin CFL

Attachments

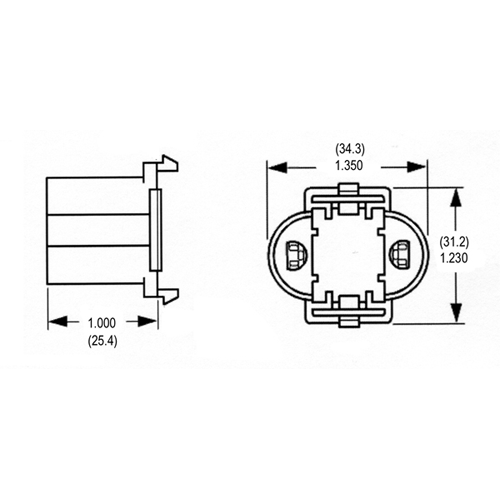

Dimensional Drawing

Dimensional Drawing
