Electro Components

EC-215WH

High ambient temperature toggle switch

LOGIN TO VIEW THIS PRICE

Description

High ambient temperature toggle switch

AC 20amp 125v
Snap-In Mount
Suitable for high ambient temperature applications
Operating temperature 32'F to 185'F

Specifications

Specification

Status: Available

Case Qty: 500 (sold individually)

Country of Origin: United States

Certifications / Approvals: UL, CSA

Warranty: 1 Year Manufacturer Warranty

Operating Temp. (min): 0C / 32F

Case Temperature (max): 85C / 185F

Voltage (V): 125/250V

Amps (A): 20A @125V, 10A @250V

Item Type: Refrigeration Switch

Material: Phenolic

Series: High Ambient Switches

Termination: Blade Connectors

Mounting Type: Snap-In

Panel Cut-Out: 33mm x 18mm

Color: White

Weight: 0.1

General

Brand: Electro Components

Item #: 73458

Category: Switches and Receptacles

Attachments

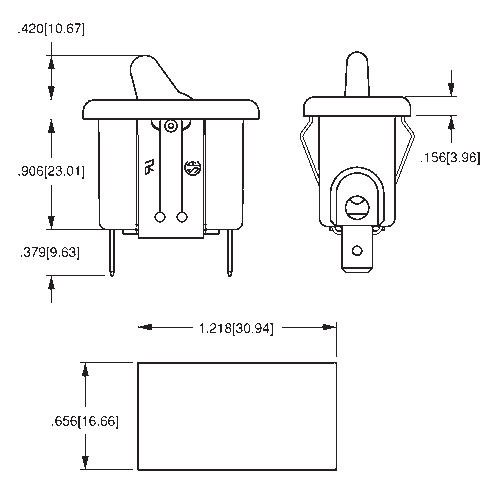

Dimensional Drawing

Dimensional Drawing
