BJB Electric LP

LH0618 (26.313.6016)

Shunted, T8 only straight insertion lamp holder with slide on mounting

true

$3.69

Discontinued, view suggested replacement. LH1106
see comparison below.

Description

Shunted, T8 only straight insertion lamp holder with slide on mounting

BJB
Model# 26.313.6016
1.05 x 1.24 x 0.31
16mm lamp axis
G13 medium bipin
Shunted
For T8 bipin LED or fluorescent tubular lamps
Can be used with "U" lamps
Straight insertion
Slide on
Quick wire connects
cULus
660W 600V

Compare with similar products

	BJB Electric LPLH0618 26.313.6016 Shunted, T8 only straight insertionAdd to Cart
Reviews	(2)
Status	Discontinued
Case Qty	1,000 (sold individually)
Shunt Type	Shunted
Dimensions(L/W/H)	_x_x1.05
Weight	0.01
Country of Origin	Germany
Certifications / Approvals	cULus
Rated Wattage	660w
Rated Voltage	600v
Bulb Shape	T8 U Bend
Base Type	G13
Material	Polycarbonate
Termination	Quickwire 18AWG
Mounting Type	Slide-On
Show More Specifications

Specifications

Specification

Status: Discontinued

Case Qty: 1,000 (sold individually)

Shunt Type: Shunted

Dimensions(L/W/H): _x_x1.05

Weight: 0.01

Country of Origin: Germany

Certifications / Approvals: cULus

Rated Wattage: 660w

Rated Voltage: 600v

Bulb Shape: T8 U Bend

Base Type: G13

Material: Polycarbonate

Termination: Quickwire 18AWG

Mounting Type: Slide-On

General

Brand: BJB Electric LP

Item #: 70674

Category: Linear Bi-Pin T8 BiPin

Attachments

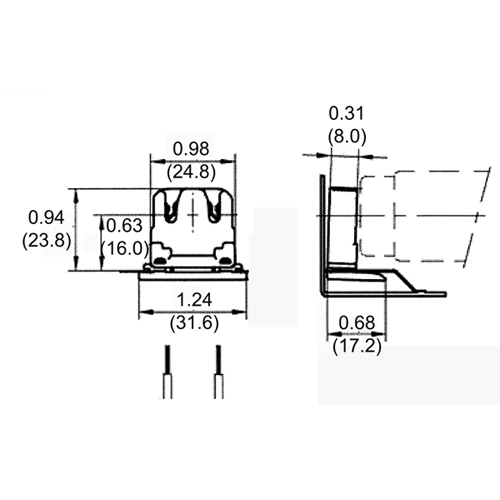

Dimensional Drawing

Dimensional Drawing
